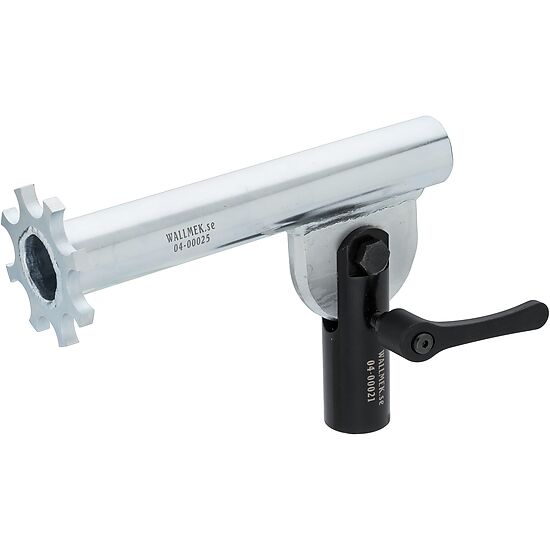

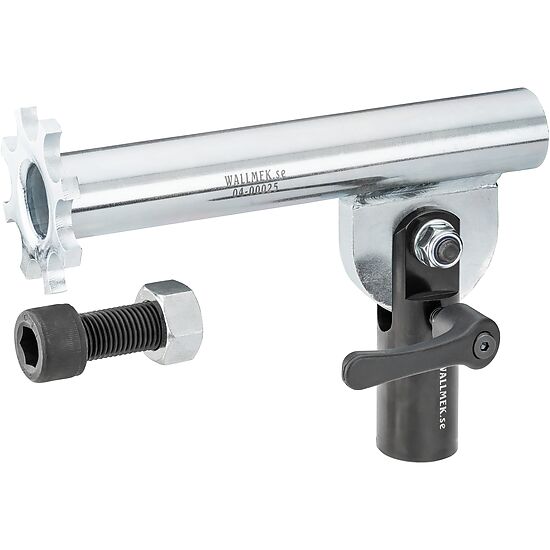

Tripod mount ∙ adjustable V5917

V5917

EAN: 4047728059831
CrossReferenz Wallmek-No: 04-00025
More informations Print datasheet

Dealer search

Product Description

  • The holder allows you to work at different angles
  • Serves as an extension to the V4565 ∙ V4566
  • Adjustable both horizontally and vertically

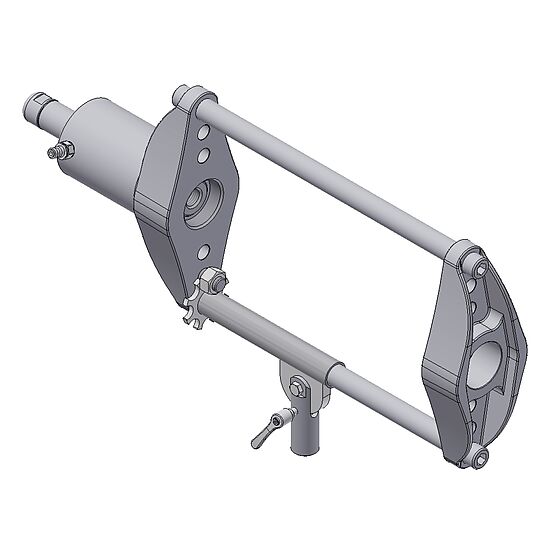

  • Bracket can be adapted to transmission jacks or hydraulic cylinders

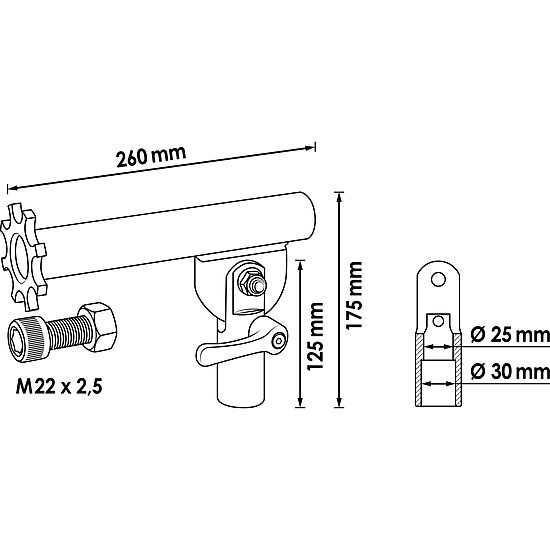

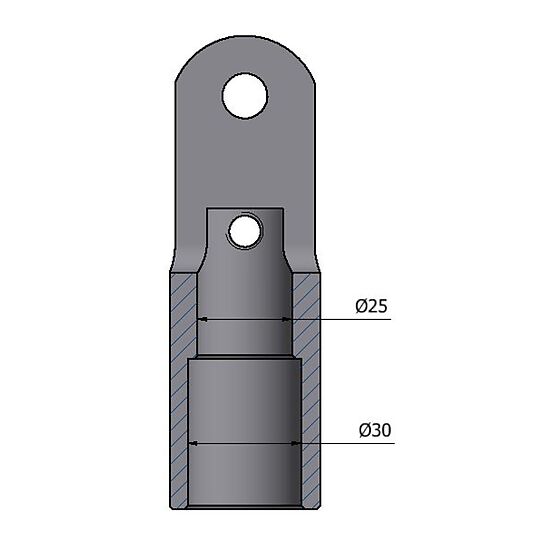

  • The bracket has inside diameters of 25 mm ∙ 30 mm
  • The multiple positions on the flange in combination with the swivelling head maximise access under the vehicle
  • Optimised application for the V4556 press plate

Technical Data for V5917

CrossReferenz Wallmek-No:
04-00025

Used in

Plate ∙ with thread ∙ for V3750 ∙ V4554 ∙ V4555

V4556

Plate ∙ with thread ∙ for V3750 ∙ V4554 ∙ V4555

CrossReferenz Wallmek-No: 03-00031-002
